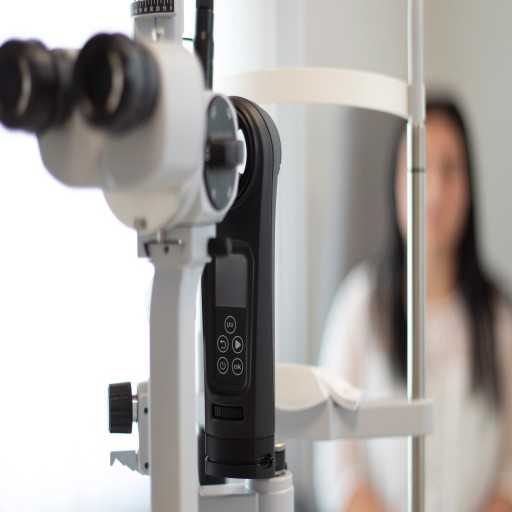

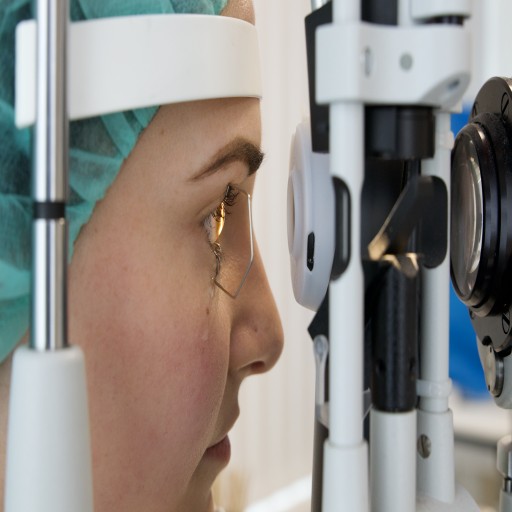

All 221,000 ophthalmologists in the world are united by one piece of equipment: the slit lamp. It defines our profession. The C-Eye technology provides all these ophthalmologists the ability to perform CXL at the slit lamp. Without an operating room. Simple. Efficient. Safe.
Perform CXL at the slit lamp. Or use the C-Eye device just like any other CXL device: on a table mount, in your operating room.
Work in different places? Take the C-Eye device wherever you go. Charge it via USB-C, with your smartphone charger, or your laptop.
Ability to perfrom CXL( Keratoconus) or PACK-CXL (infectious keratitis).
Every time CXL is performed, whether is it is to treat keratoconus or infection, four things happen:
- Effect #1: biomechanical stiffening of the cornea, which is the original intended effect of CXL to treat biomechanically weakened corneas.
- Effect #2: increased resistance to digestion. This is very beneficial in infection: the infectious organisms produce enzymes to digest the cornea. Through steric hindrance effects, CXL makes cornea the cornea more resistant digestion, and therefore melting.
- Effect #3: Intercalation with nucleic acids. This acts to stop microorganisms from replicating.
- Effect #4: The generation of reactive oxygen species attacks both cell membranes and also the nucleic acids of microorganisms, killing them
So with C-EYE CXL, you not only stiffen, you perform all four effects simultaneously. And the beauty of PACK-CXL is that unlike drug therapies, you do not only kill bacteria, you do not only kill fungi, you kill them both at the same time, and because PACK-CXL makes the cornea more resistant to digestion, this means that the resulting scar should be smaller that would otherwise be the case.
FEATURES
- Slitlamp Mount: EMAGine’s C-Eye device fits on a wide range of slit lamps.

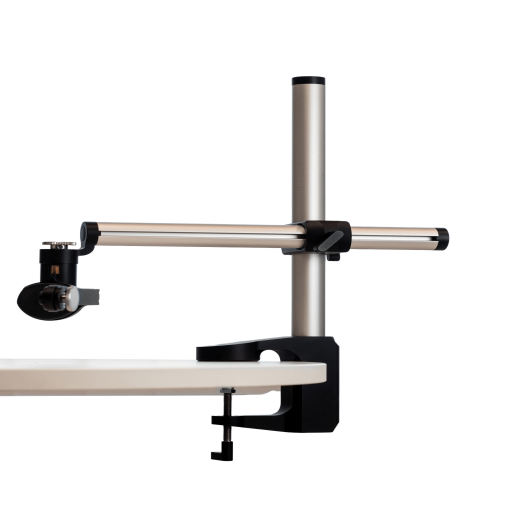

- Table Mount: The C-Eye device can be mounted on a slit lamp. But it can also be mounted on a table mount (sold separately), and used like any other CXL apparatus.
- Range of Intensities:Delivers 3, 9, 15, 18 and 30 mW/cm² covering the entire range of treatment modalities for CXL and PACK-CXL treatments.
- Pulsed & Continous Light: For various keratoconus & infectious keratitis settings.The C-Eye device can deliver both continuous and pulsed UV-A irradiation, making it perfectly suited for a number of epi-off and epi-on protocols.
- Superior Battery Technology: The batteries allow for ten consecutive treatments when fully charged. Charging can be performed on the C-Base or using any smartphone USB-C-charger.
- Thickness Adjusted Profile: The cornea is thicker in the periphery. The irradiation profile of the C-Eye device delivers more energy in the corneal periphery, following the increase in thickness from center to periphery.

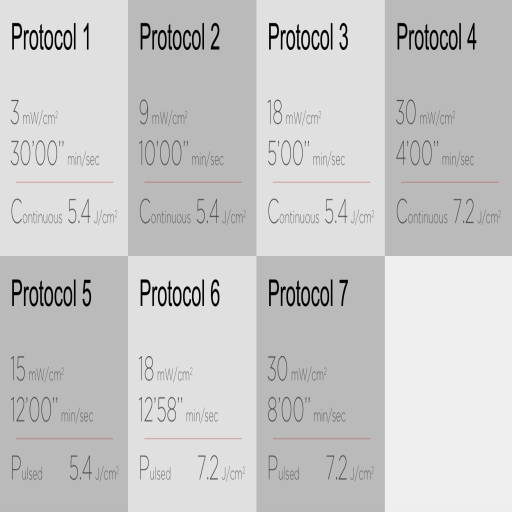

- Integrated Protocols: Choose from a number of preset CXL and PACK-CXL epi-on and epi-off protocolsavailable for your convenience.Total 7 inbult protocols to choose from a click of a button.All protocols from DRESDEN to ACCELERATED & HIGH FLUENCE for PACK-CXL included.Lowest time is 4 minute.
INDICATIONS
- Keratoconus.
- Ectasia after LASIK/PRK
- Pellucid marginal degeneration,
- Infectious keratitis(Bacteria, including Staphylococcus aureus, both MSSA and MRSA (antibiotic (Methicillin)-sensitive and antibiotic-resistant), Pseudomonas aeruginosa, and Staphylococcus epidermidis: efficacy 80–99%.Fungi, including Fusarium and Candida albicans: efficacy 60–70%.)
- Sterile corneal melting,
- Bullous keratopathy.

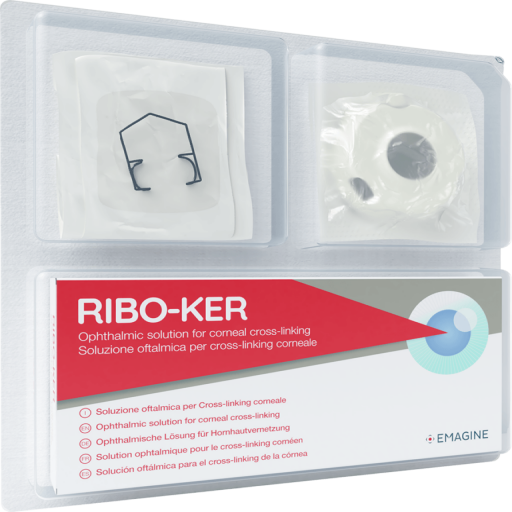

RIBOFLAVIN
- CE marked
- 0.1% hypo-osmolaric riboflavin
- Imbibition time: 10 minutes
- Ready for all epi-off and epi-on CXL applications including iontophoresis
- Ready for PACK-CXL applications
- Can be used on normal thickness and thin corneas
- No more confusion. One Riboflavin solutions for all varities of treatments
Brochures
hello.pdfMultimedia
Request a Quote
Please fill out the form below to request a quote. We will be in contact with you shortly.
